Cabri technical overview

Published on 2023/10/23

Cabri enables fast and secure data synchronization between people, medias and places.

While a previous article presented its main features from a user's perspective, this one provides some information on its implementation to help understanding how efficiency and security are supported.

Even if you are not interested in knowing how Cabri is designed, some information on the use of indexes and encryption is important for the operation and the security of DSS.

Cabri is fast

As seen in the previous article, Cabri enables storing and synchronizing data either on a local drive or using Cloud Storage, but in any case providing at the same time full data historization and possible encryption.

Such features require fast access to the actual data and its corresponding metadata: size, modification time and access rights, but also the ability to read and write large amount of data either on local devices or using cloud services over internet.

This section details the main supporting mechanisms.

Parallel processing

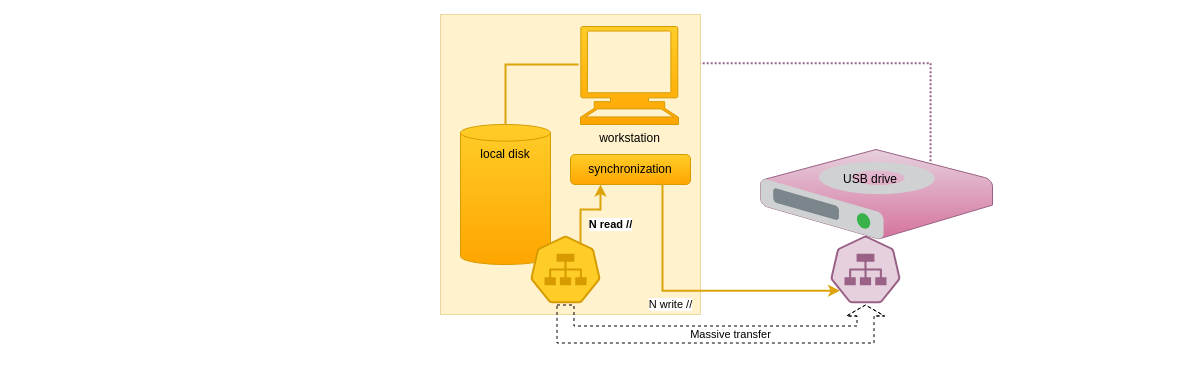

Cabri's most resource intensive use concerns the synchronization of large amount of data. The following diagram shows the synchronization of a local directory with a local Cabri DSS.

When the Cabri DSS is initially empty, all local files will be copied to it, requiring a large amount of I/O operations, both for reading the local files content and for writing it to the DSS. Depending on the storage devices technology, this may be slow or fast, but in the second case, as most computing hardware is able to parallelize processing, Cabri takes care of launching several synchronization operations in parallel, so that the processing is as fast as the technology permits.

To be more explicit:

• a directory's content entries may be processed in parallel
• different subdirectories may be processed in parallel
• a workload reducer controls that system resources usage remains limited, it is configurable
• there is always a significant number of I/O operations pending, so that they start execution as soon as the corresponding device is ready

The reducer may be limited as much as wanted, and even processing may be fully serialized in case the system has limited resources. In the case the target is a slow USB key, the result may even be globally faster than if parallelized.

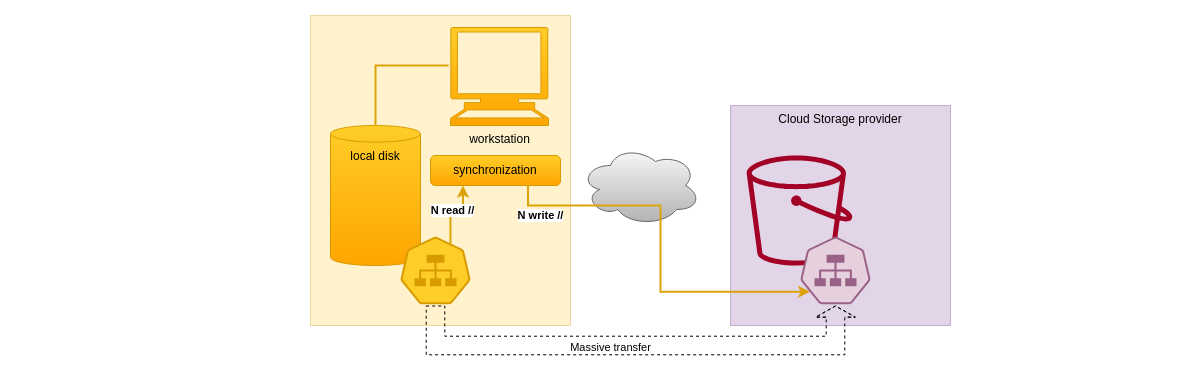

The following diagram shows the synchronization of a local directory with a Cabri DSS providing cloud storage. In that case, writing to the DSS requires massive network uploads.

While the Cloud storage providers generally support a large amount of parallel I/O operations, the limitation will rather come from the available network bandwidth and local system resources. Using the default reducer configuration will perform fast if the system supports it, for instance if Cabri is launched as a Cloud service, but limiting its capacity may be wanted if network errors occur. For instance, network resources appear more available and efficient on Linux systems than on Windows Home OS, from my personal experience.

Other uses of parallelization

Parallel processing is used as well by almost all Cabri features implementation. Its use appear very valuable in the following situations:

• listing local files or DSS recursively, because it requires many I/O operations,
• computing checksums on a full directory's content, to evaluate the need for synchronization,
• auditing DSS content, rebuilding their index, because it requires a full scan of the DSS

Flow processing

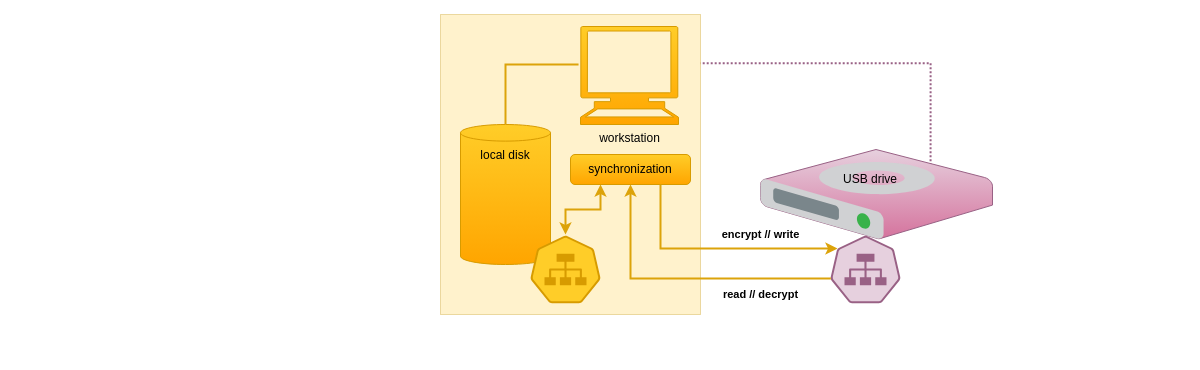

The underlying encryption technology is age and it provides the ability to encrypt and decrypt data as a flow. The following diagram shows data synchronization back and forth between local files and an encrypted local DSS.

In such a scenario, data sent to the DSS may be written as soon as encrypted data chunks are available. On the other direction, data read from the DSS may be written to a local file as soon as decrypted data chunks are available.

Indexes

Indexing the DSS content metadata is necessary for several reasons:

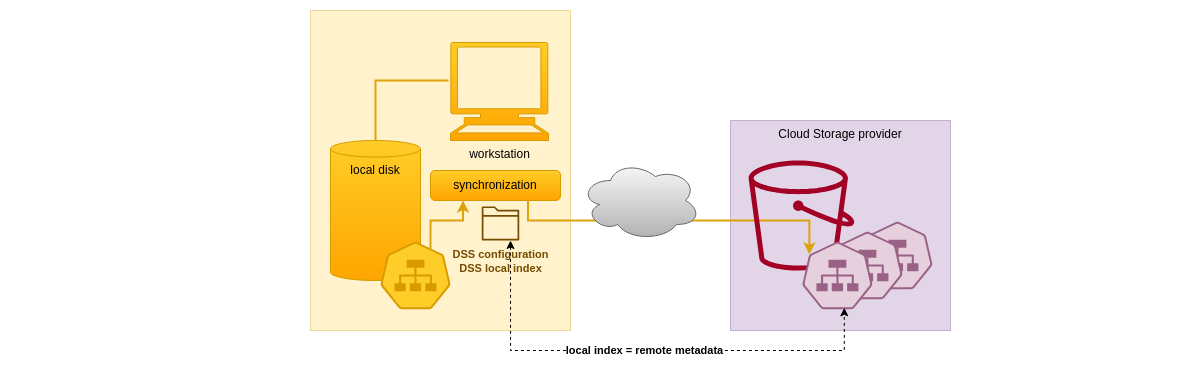

• DSS metadata on Object Storage cannot be scanned efficiently, so an index of what is stored in the Cloud must be maintained locally
• even in the case of a DSS whose data is stored on a local device, the number of I/O required to retrieve an entry's metadata can become too important: this is because the namespace hierarchy leading to the entry has to be inspected, taking into account the history and the access rights at each level
• the access to encrypted data, which is specifically detailed later in this article, requires the use of an index

So in the end almost all DSS are indexed, and, as a consequence, the evaluation of the need to synchronize content between too large datasets is very fast, at least on the DSS side in case the other side is barely made of local files.

Indexes and remote access

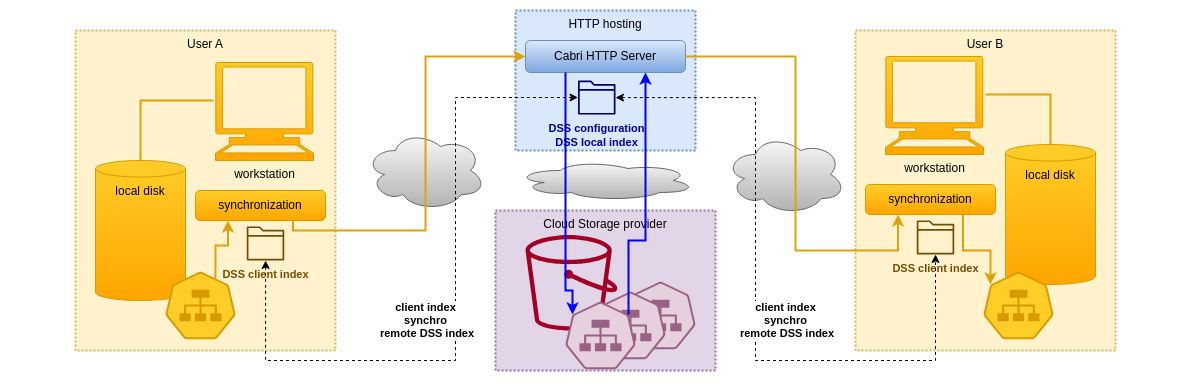

Indexes play an important role concerning multi-user access through a remote DSS. As described on the following schema, and explained in the previous article, a DSS is set up on a remote HTTP server for enabling different users to share their local data.

From the DSS access perspective, the Cabri HTTP server acts as any other Cabri utility accessing a DSS, and so maintains an index of the DSS metadata locally. But in that case, the DSS content can be updated by the HTTP server in response to any of its clients requests.

On the client user's side, a client index is set up and kept up-to-date with the index data coming from the server: each new connection from a client refreshes its index if needed from the server index. The first time a client connects to a server, the full server index is downloaded by the client, which may delay the response. After that, all access to DSS metadata is performed locally on the client index, which is again very fast.

Cabri is secured

Data security covers different aspects, the most important of which from Cabri's perspective are confidentiality, integrity and to some extent availability.

• The confidentiality is the first concern of Cabri's design. In the case the data is encrypted, the decryption only occurs on client position and under user's control.
• The integrity is provided by the use of checksums.
• The availability is provided by a set of administration tools that can scan the DSS content, audit it, and rebuild indexes in case they are corrupted: indeed the entries metadata and content are distributed as local files or cloud storage objects.

Of course in complement to this design and tooling, appropriate system level security must be applied, such as backup of keys and local DSS data files if applicable. Cloud storage availability is generally excellent but even then, additional backup may be wanted in case of disaster.

The remaining sections provide some explanations on Cabri's design for these security aspects.

Metadata and data-level encryption

Encrypted DSS store all the data: metadata and content encrypted. The encryption uses public keys, and only the owners of the encryption keys can decrypt the content by using their private keys.

Apart from encryption, the DSS data architecture remains the same, with each entry stored as metadata and content files or cloud object storage. The encryption is achieved at the data level: each entry can be made visible to a specific set of user's public keys by encrypting the files or objects with those keys.

As the access to actual data content requires reading corresponding entry and parent namespaces metadata in the DSS, this metadata has to be accessed decrypted in an index.

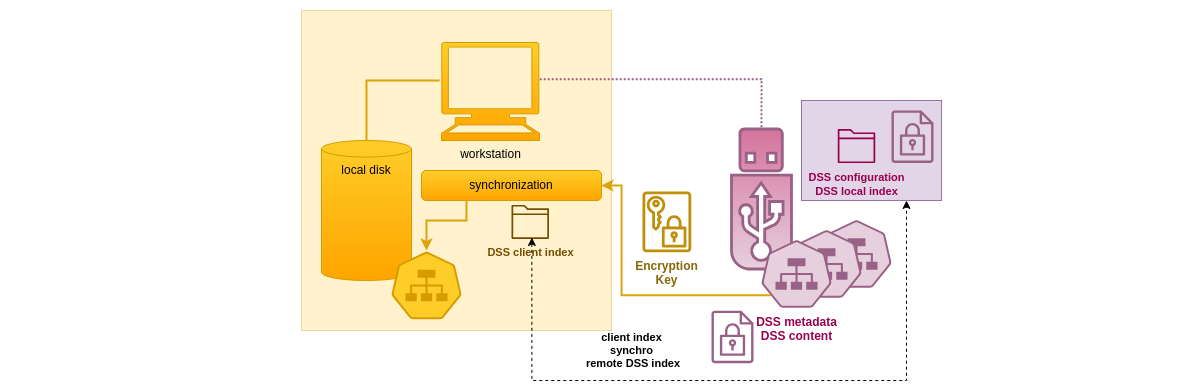

The following schema explains how this is implemented. In that example, an encrypted DSS stored on an USB key is used to restore confidential files to decrypted local storage.

The DSS data architecture for encrypted DSS is similar to what is implemented for remote access, with the addition of encryption concerns. The DSS maintains an index of its metadata, in that case encrypted metadata. On the client user's side, a client index is set up and kept up-to-date with the index data coming from the encrypted DSS. As the client's intent is to access to decrypted data, the client index decrypts the DSS metadata as well. All DSS metadata that the client can decrypt with the private key(s) it owns will be stored decrypted in the client index.

As a result, local access to encrypted DSS is both secured and fast. The metadata and the data are only decrypted on local storage and in client index with the user private key(s) and under his or her control.

End-to-end encryption for data sharing

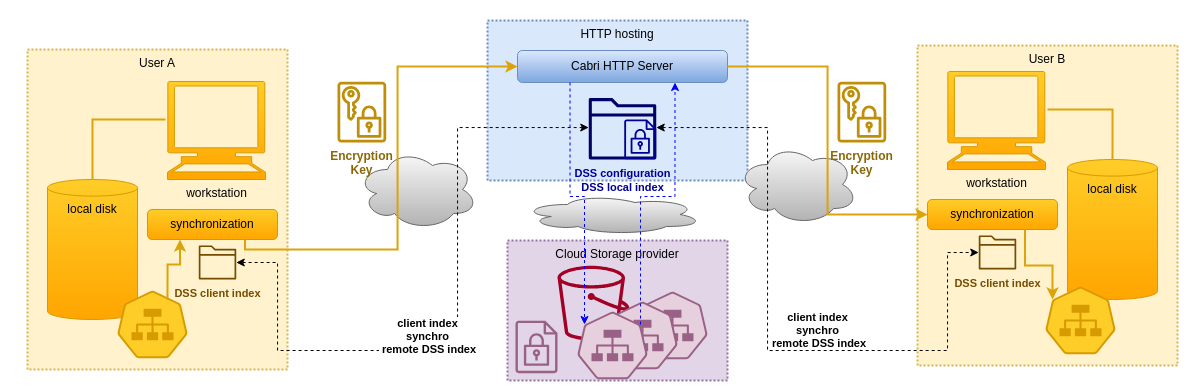

Based on the previous explanations the following schema shows how several users can share their local confidential data through a remote encrypted DSS.

In that case, the Cabri HTTP server is responsible to maintain the index of encrypted metadata. The server has no access at all to any user's private key, so even in the case a security breach is exploited on the hosting infrastructure, confidential data is never exposed. The Cabri HTTP server just transfers and stores opaque encrypted metadata and data, and indexes the encrypted metadata for the sole purpose of communicating updates to the clients.

The clients receive the server encrypted metadata, decrypt it and refresh their local index. Apart the fact that the access to the DSS is remote through a Cabri HTTP server, the access to the encrypted data is the same as if the DSS were local.

Remote access to encrypted DSS has the same benefits as local access, being both fast and secure.

Distributed meta-data and content

As briefly mentioned above, the DSS data architecture is distributed, as metadata and content is stored either as local files or as cloud storage objects, depending on the chosen technology.

As Cabri performance highly relies on the use of indexes, the integrity of those indexes with respect to the distributed storage is crucial for proper operation.

Anyway the distributed nature of storage makes the DSS structure resistant to system failure:

• if some metadata of content file is missing or corrupted, it can be removed, the DSS remains consistent
• if the index is missing, corrupted or not consistent with the distributed storage, it can be rebuilt by scanning the DSS data
• as the synchronization operation is idempotent, it may be run again after target DSS maintenance to restore a fully consistent dataset

In the case the data is encrypted, the index rebuild operation first occur on the encrypted content, then provides the consistent encrypted index to the client for proper decryption. The client is only able to reindex the data for the private keys it owns.

Conclusion

Confidentiality of the data processed and stored in unsecured environments was the first concern when designing the Cabri solution. I hope this article made you confident with it, anyway this is open-source, you can verify it!

The cost of security is not necessarily the loss of performance: for sure encryption and decryption require larger computing power than bare data transfer, anyway the solution remains as fast as possible by using parallel processing.

Finally, the data stored on local drives or using cloud storage may be easily scanned and reindexed after any kind of system crash. In the case of encrypted data this is obviously only under the condition you manage the encryption secret keys securely.
